Automatic Air Bubble Bag Making Machine
Feature:
This air bubble bag making machine is suitable for producing air bubble film bags, which are used to protect products inside, such as electronic products, crafts, ceramics etc.
Performance and Characteristics:
- This machine uses a microcomputer control system.
- Material feeding by stepping motor.
- With length control and an auto counting system.
- With a photo senor checking system for printing marks.
- With Inline folding system.
PRODUCT – EPF,AIR BUBBLE ROLL
* SIZE OF BAG – 50MM TO 2MTR
* 3 SIDE SEAL ‘L’ SHAP DEGREE FOLDER ASSEMBLY FOR PREPARE BAGS
EPF/AIR BUBBLE FOR 700 MM MODEL DIGITALLY LENTH CONTROL ZERO
TIME FOR CHANGING THE SIZE OF THE BAG.
* EPF / AIR BUBBLE OPEN ONE SIDE AND TWO SIDE SEAL FROM MACHINE
AND ONE SIDE FOLD FROM FOLDER.
* HEAVY DUTY AND ACCURATE AUTOMATICALLY PULLING SYSTEM THROUGH
IMPORTED RUBBER ROLLERS.

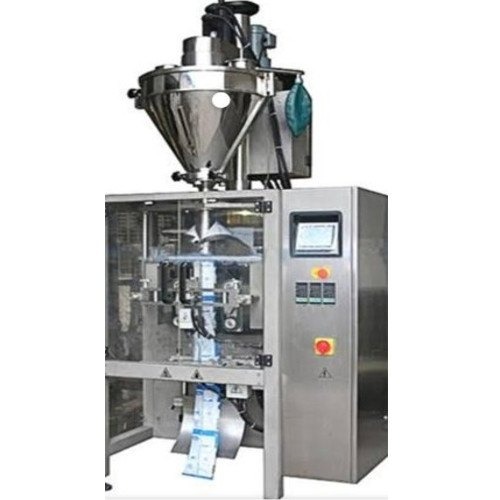

FFS Collar Type Auger Filler Machine
Prominent & Leading Manufacturer from Faridabad, we offer collar type auger filler, automatic spice packaging machine and auger filler. FFS Collar Type Auger Filler Machines are servo driven, brush less , direct drive machines ideal for high filling accuracy, Mechanical or pneumatic. Our engineers have ensured reliability with attention to detail and with use of reliable mechanical parts like servo sourced from reputed international vendors. It is suitable for grounded spices, powder, herbal powder, spices, besan, flour and all kinds of fine powders.
FILLING SYSTEM – Auger Base with Screw
- * PACKING MATERIAL – Granules, Powders, Spices etc
- * SPEED CAPACITY – 40 to 70 Bags / minutes
- * WOODEN CASE – (H) 1700mm (W) 1000mm (L) 1100mm
- * POWER CONSUMPTION – Single Phase Electric Motor 1/2 HP 220V AC
- any Good Indian Company
- * PAPER REQUIRED – Polyester Paper
- * T.C. – Dolphin Automation Digital
- * PANEL – PLC
- * TYPE OF SEAL – Centre Seal Centre or Back Seal
- * SIZE OF BAG / POUCH – (W) and (L) 30 to 300mm
- * MACHINE SIZE – (H) 2150mm (W) 680mm (L) 900mm
- * FILM ROLL SIZE – OD 100 to 300mm MAXIMUM / ID Film real pipe 100MM minimum
- * HEATER – Capecity 150×2 and 300×2
- * DRIVE – 1 H.P. Single Phase (Delta)
- * GEARBOX – Ultra

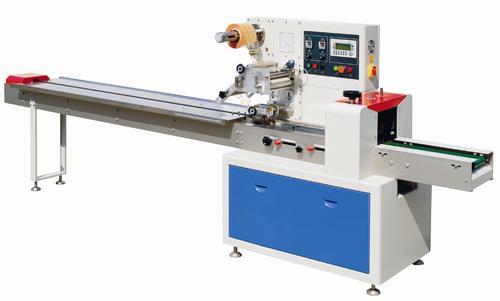

Horizontal Flow Wrapper Machine
- Horizontal flow wrappers perform three tasks in one fluid, continuous motion: in feed and spacing of items, wrapping the film around the items, and then sealing and discharging the finished product. The packages need to be protective, consistent, and professional without sacrificing speed. Flow wrappers are often called form fill and seal machines.
Horizontal flow wrappers are widely used in a variety of industries including food, personal care, household products, and more.
FILLING SYSTEM – Automatic / Manual
* PACKING MATERIAL – Cake, Biscuits and Automobile Parts
* MACHINE SIZE – (H) 1100mm (W) 1700mm (L) 1800mm
* SPEED CAPACITY – 80 to 100 nos/min
* POWER CONSUMPTION – Single Phase 220 Volt AV 3kw
* PAPER REQUIRED – Heat Sealable Laminated Film
* PANEL – PLC
* TYPE OF SEAL – Centre Seal Centre or Back Seal
* SIZE OF BAG/POUCH – (w) 100 to 300mm (L) 100 to 150mm
* DRIVE – Delta 1H.P. Single Phase
* GEAR BOX – Ultra
* WEIGHT – 700 Kg. Approx

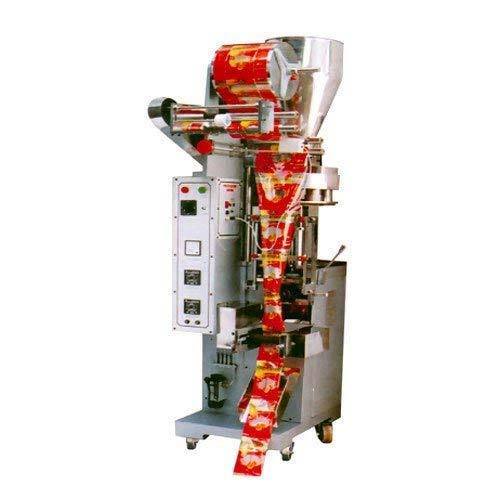

FFS Center Sealing Machine
High operational fluency Low power consumption Long working life.
- We are actively committed to providing the best in class FFS Center Sealing Machine. Known for its sturdy design, this machine is widely utilized for the efficient & proper packaging of beverages, water, milk, oil, juices and other such liquid products. Our engineers only use premium quality components and cutting-edge technology in the manufacturing process of this packaging machine. In order to fulfill the particular needs of the clients, we provide this packaging machine in numerous specifications and at market leading prices.
Suitable to pack oil & shampoo syrup & many other free flow liquids.
Features:
High operational fluencyLow power consumption Long working life.
Applications:
Suitable to pack oil & shampoo syrup & many other free flow liquids.
FILLING SYSTEM – Volumetric Cup Filler Machine
* PACKING MATERIAL – Granules, Powders, Tea etc
* SPEED CAPACITY – 40 to 70 Bag/min
* WOODEN CASE – (H) 1700mm (W) 1000mm (L) 1100mm
* POWER CONSUMPTION – Single Phase 1/2 HP 220V AC
* PAPER REQUIRED – Polyester Paper
* MOTOR – Good Indian Brand like Godrej/CG etc
* T.C. – Dolphin Automation Digital
* PANEL – Jialal/Alpha
* SIZE OF BAG/POUCH – (W) 100 to 160mm (L) 80 to 250mm
* TYPE OF SEAL – Centre Seal Centre or Back Seal

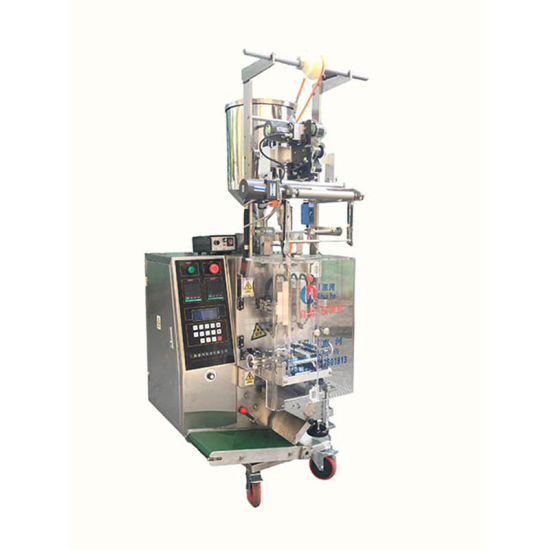

FFS Four Side Seal Machine
It’s used for cooling gel patches, mask, wound dressings, capsicum plasters and four side sealing packing. High speed and continuous, size adjustable without mold changing. Whole machine with 8 sets servo control system, 3sets auto-rectifying mechanic
The roll of packaging material (the front and back of the bag are printed on a kind of roll) is divided into two parts by a high-precision cutter, and the same roll film is stretched uniformly, and the plate is accurate.
Longitudinal sealing part: this part is used to seal the left and right sides of the product, and the heating method is the heating tube. Transverse sealing part: this part is a reciprocating mechanism, which is used to seal the packaging bag. Cutter part: the secondary part is the cutting part. After the product is packaged, it can be hobbed here, which can run at high speed to increase the output. Rectifying and guiding part: rectifying and guiding frame is used to guide the film and prevent the film from deviation.
FILLING SYSTEM – Volumetric Cup Filler Machine
* PACKING MATERIAL – Granules, Powders, Tea etc
* SPEED CAPACITY – 40 to 70 Bag/min
* WOODEN CASE – (H) 1700mm (W) 1000mm (L) 1100mm
* POWER CONSUMPTION – Single Phase 1/2 HP 220V AC
* MOTOR – Good Indian Brand like Godrej/CG etc
* T.C. – Dolphin Automation Digital
* PANEL – Jialal/Alpha
* TYPE OF SEAL – Three side and Four Side Sealing Machine
* SIZE OF BAG/POUCH – (W) 100 to 160mm (L) 80 to 250mm
* MACHINE SIZE – (H) 2150mm (W) 680mm (L) 900mm
* HEATER – Capecity 150×2 and 300×2
* DRIVE – Delta 1H.P. Single Phase

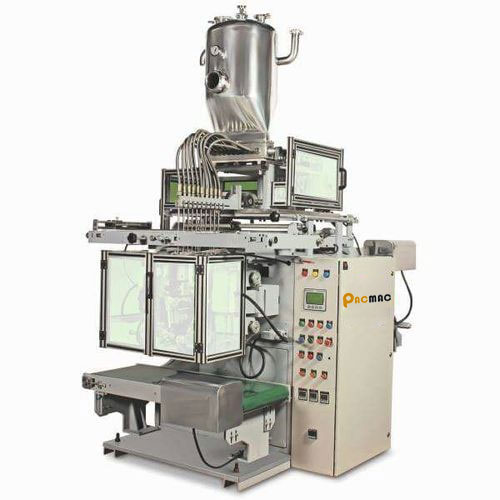

Liquid Fill Multitrack Machine
Liquid Fill Multitrack Machine operator exposure to hazardous materials and reduces container handling. It also increases productivity while eliminating product giveaway. Available standalone or integrated with material-handling solutions, Liquid Fill Multitrack Machine is perfectly engineered to meet your liquid filling needs in today’s industrial environments. Liquid Fill Multitrack Machine models are available in options such as complete stainless steel with nitrogen gas purging or hot water/steam jacketing and are appropriate for your hazardous area.
CAPACITY – 50ml,50-250ml,100-500ml,250-1000 ml
* SPEED CAPACITY – High Speed upto 480 Pouches/min
* POWER CONSUMPTION – Single Phase 1HP 220V AC
* FILLING ACCURACY – ±1% (Depending Upon Products)
* TOTAL PLC CONTROL
* FULLY AUTOMATIC COMPACT
* SPEED CONTROL THROUGH AC FREQUENCY DRIVE
* P.D.I. BASE TEMPERATURE CONTROLLER SYSTEM
* AUTOMATIC BATCH CUTTING

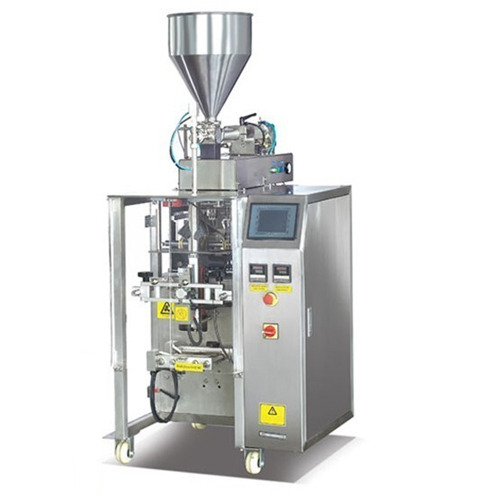

Oil Jam Juices Packing Machine
Oil Jam Juices Packing Machine filling machine is used to inject aseptic liquid food into aseptic packaging materials under aseptic conditions, and at the same time complete the sealing and molding of packaging, so as to extend the shelf life of products. Our product performance is more stable and reliable, which guarantees the safety needs of our customers for our Oil Jam Juices Packing Machine.
FILLING SYSTEM – Liquid Base Pump System
* PACKING MATERIAL – Oil,Jam,souces,Juce,Shampoo etc
* SPEED CAPACITY – 40 to 70 Bag/min
* POWER CONSUMPTION – Single Phase 1/2 HP 220V AC
* MOTOR – Good Indian Brand like Godrej/CG etc
* T.C. – Dolphin Automation Digital
* PANEL – Jialal/Alpha
* MACHINE SIZE – (H) 2150mm (W) 680mm (L) 900mm
* HEATER – Capecity 150×2 and 300×2
* DRIVE – Delta 1H.P. Single Phase

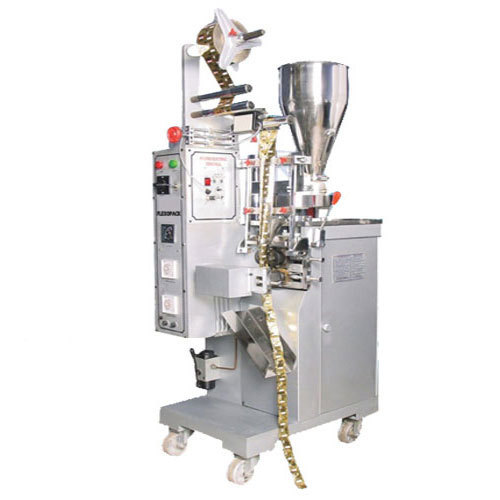

Automatic Water Pouch Making Machine
We deal for a leading Brand Manufacturer of water pouch packaging machines, primes pouch packing machine, high speed pouch packing machine, automatic bhujia pouch packing machines, uneven products packing machine and semi automatic pouch weigh filling machine from Faridabad, India.
* FILLING SYSTEM – Liquid Base Pump System
* SPEED CAPACITY – 40 to 70 Bag/min
* POWER CONSUMPTION – Single Phase 1/2HP Motor 220V AC
* MOTOR – Good Indian Brand like Godrej/CG etc
* T.C. – Dolphin Automation Digital
* PANEL – Jialal/Alpha
* FILM ROLL SIZE – (OD) 100 to 300mm MAXIMUM / (ID) Film real pipe 100MM minimum
* HEATER – Capecity 150×2 and 300×2

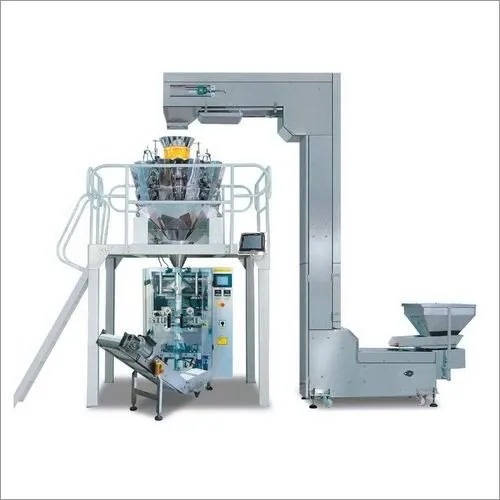

Multi Head Collar Type Machine With Elevator
Multi Head Collar Type Machine is an enhanced version of the Four Multi Head Collar Type Packing Machine, it provides better accuracy than the volumetric machine. It comes with an auto conveyor system for feeding. There are two types of Multi Head Collar Type Machines to choose from:
1.Ten headwear
2.Fourteen headwear
These machines are made for heavy duty industrial usage. You can enjoy a high accuracy in combination with a high production rate.
* Simple operation and low maintenance
* All contact parts are made with SS316
* Machine is equipped with tha AC frequency drive latest addition for speed adjustment
* Photoelectric mark registration system for precise cutting and sealling of sachet/pouche
* Custom made to suit specific requirement
